Signal and source survey
Ajmi checks satellite source, dish position, /headend condition, existing cabling and signal quality.

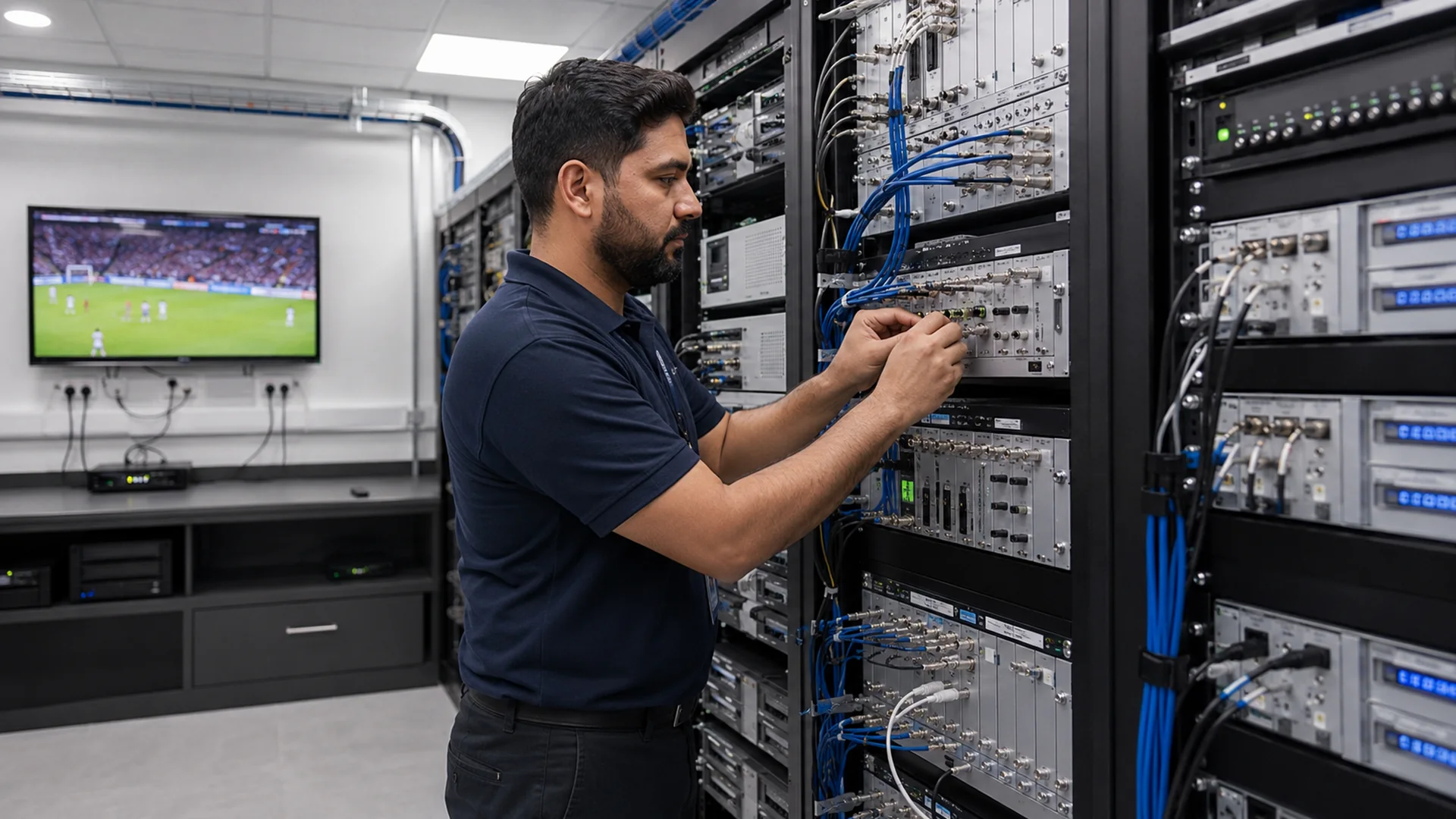

TV Headend System Integration
Headend system planning and integration for satellite, MATV, SMATV, CATV and IPTV distribution projects.
Real service scope
Headend-system planning and integration
AJMI reviews satellite and other channel sources, required services, rack space, power, cooling and the existing distribution network before selecting reception, processing and output equipment.
A headend designed for its actual distribution path
Receivers, modulators, encoders, combiners and network outputs are arranged around the approved channel plan. Signal or stream quality, labelling, monitoring and future IPTV migration are considered from the start.
Source, channel and service-plan verificationReceiver, processor, modulator or encoder selectionRack, power, cooling and output-path coordinationChannel testing, labelling and headend documentation
Work modules
Service capability modules with field execution
Each module below represents a practical work area Ajmi can handle during planning, installation, commissioning or support.

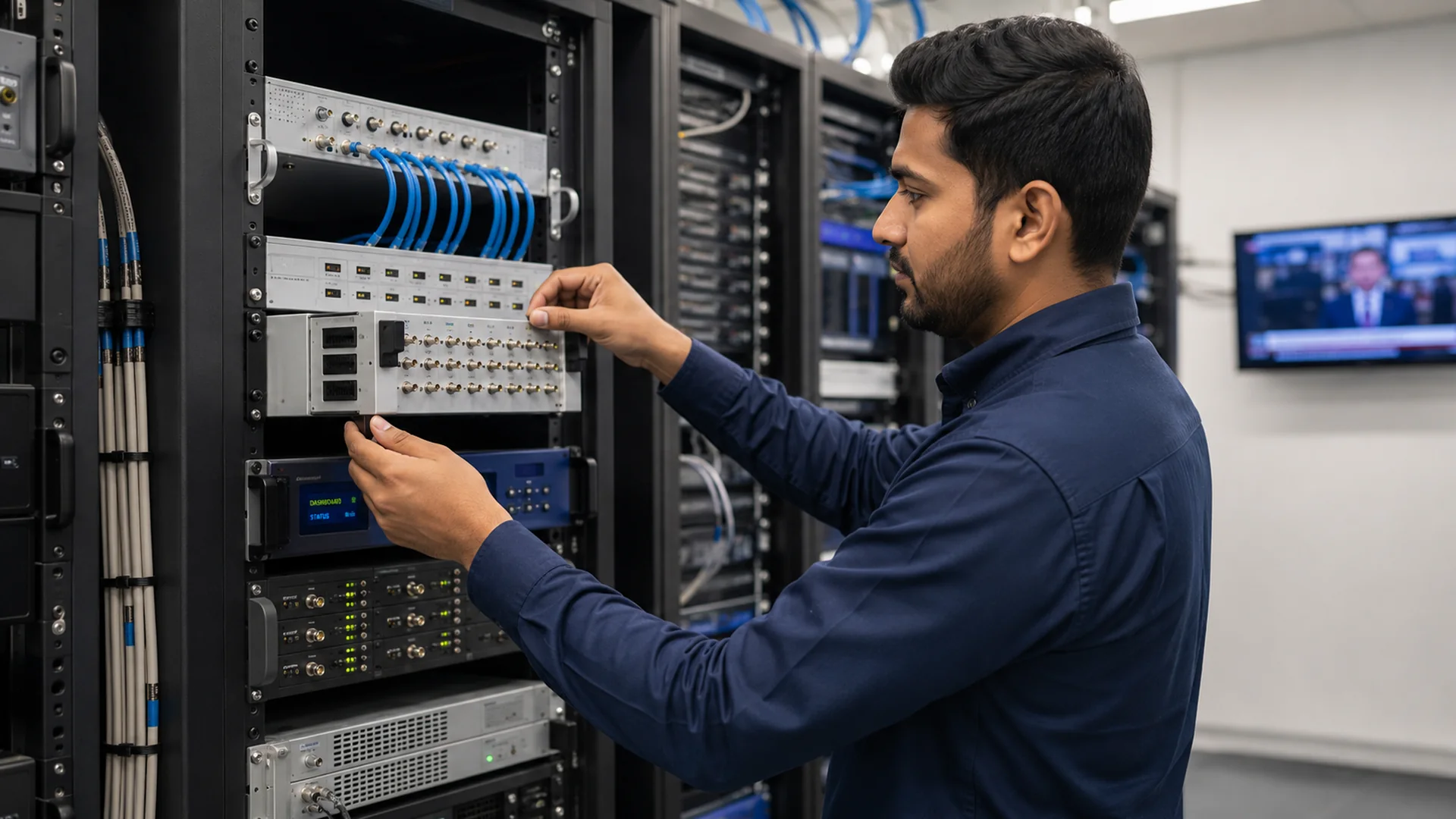

Headend and rack design
, modulators, encoders, and rack equipment are planned according to the project.

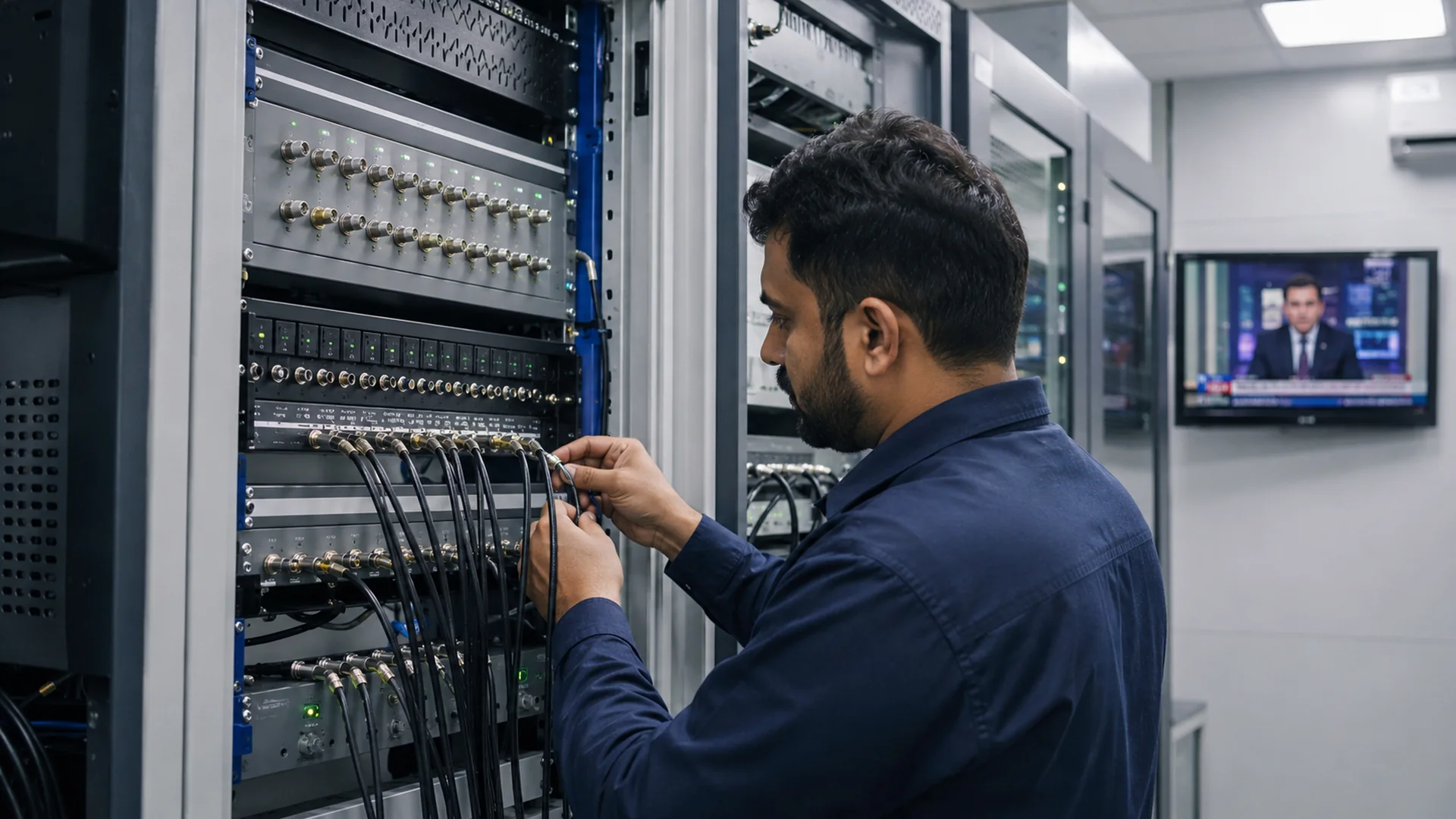

Distribution cabling layout
Riser, floor, room outlet, coax/fiber route and cable quality are reviewed for stable TV distribution.

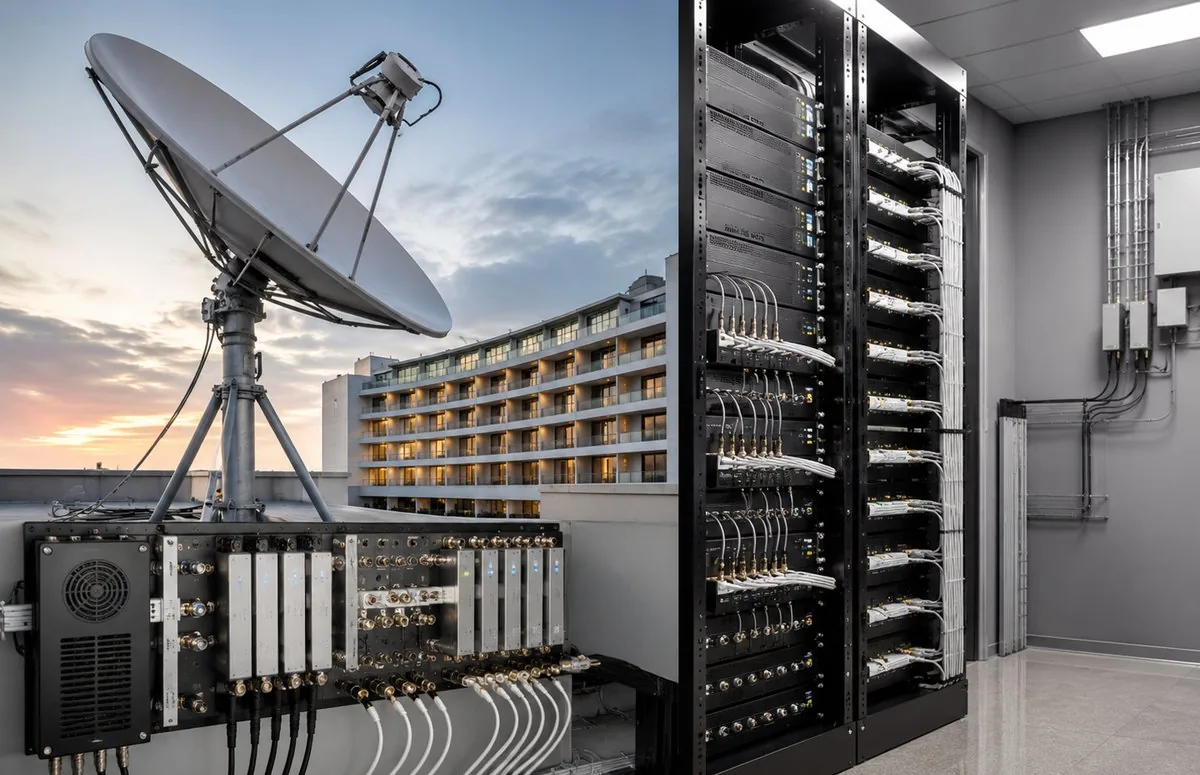

/ setup
Distribution levels, taps and points are arranged for reliable signal delivery.

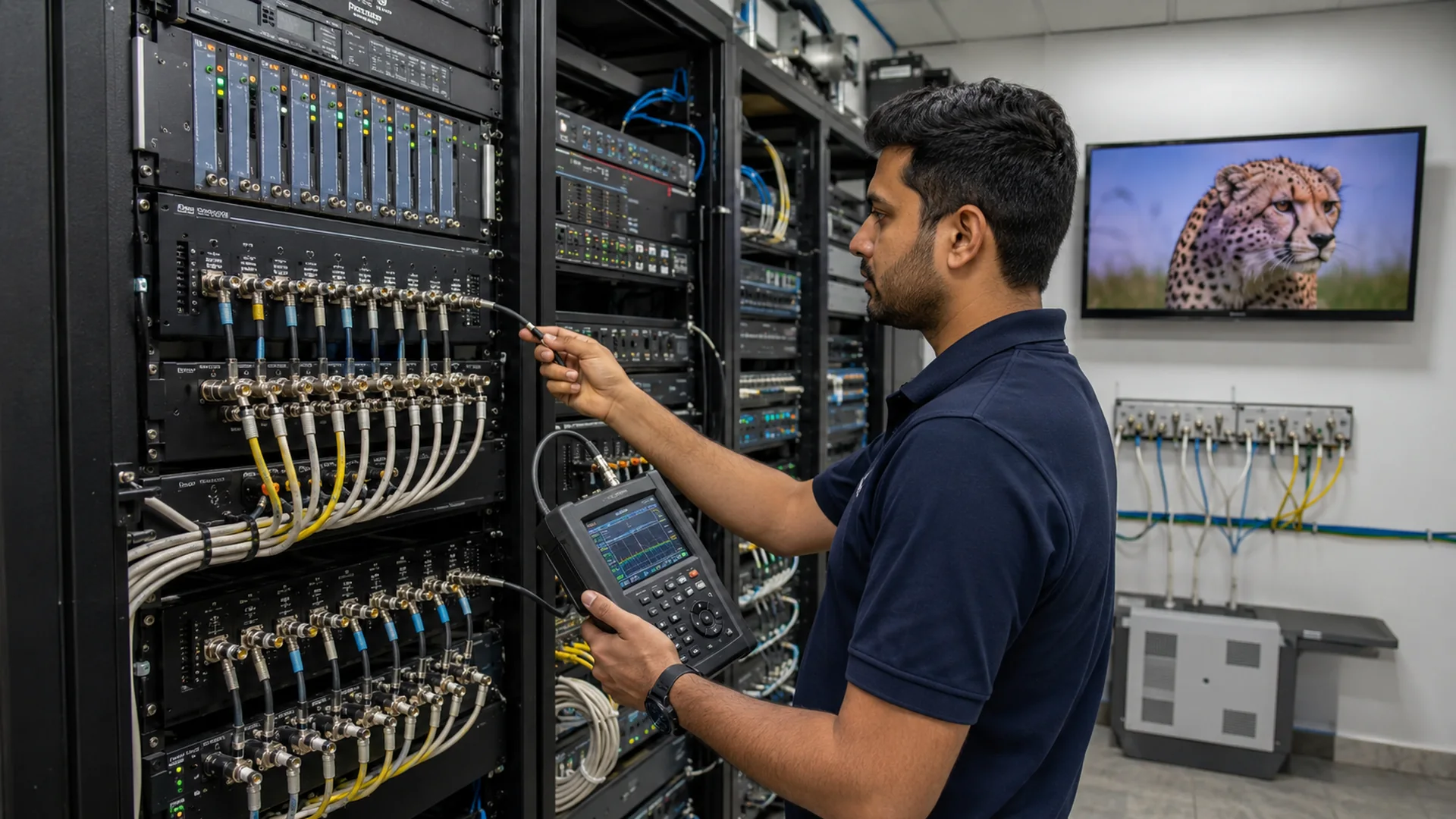

Testing and fault tracing
Signal strength, quality, channel availability and weak points are tested during commissioning.
Maintenance and upgrade
Ajmi supports existing MATV, SMATV, CATV, satellite and headend systems with repair and upgrade planning.
Technical system drawing

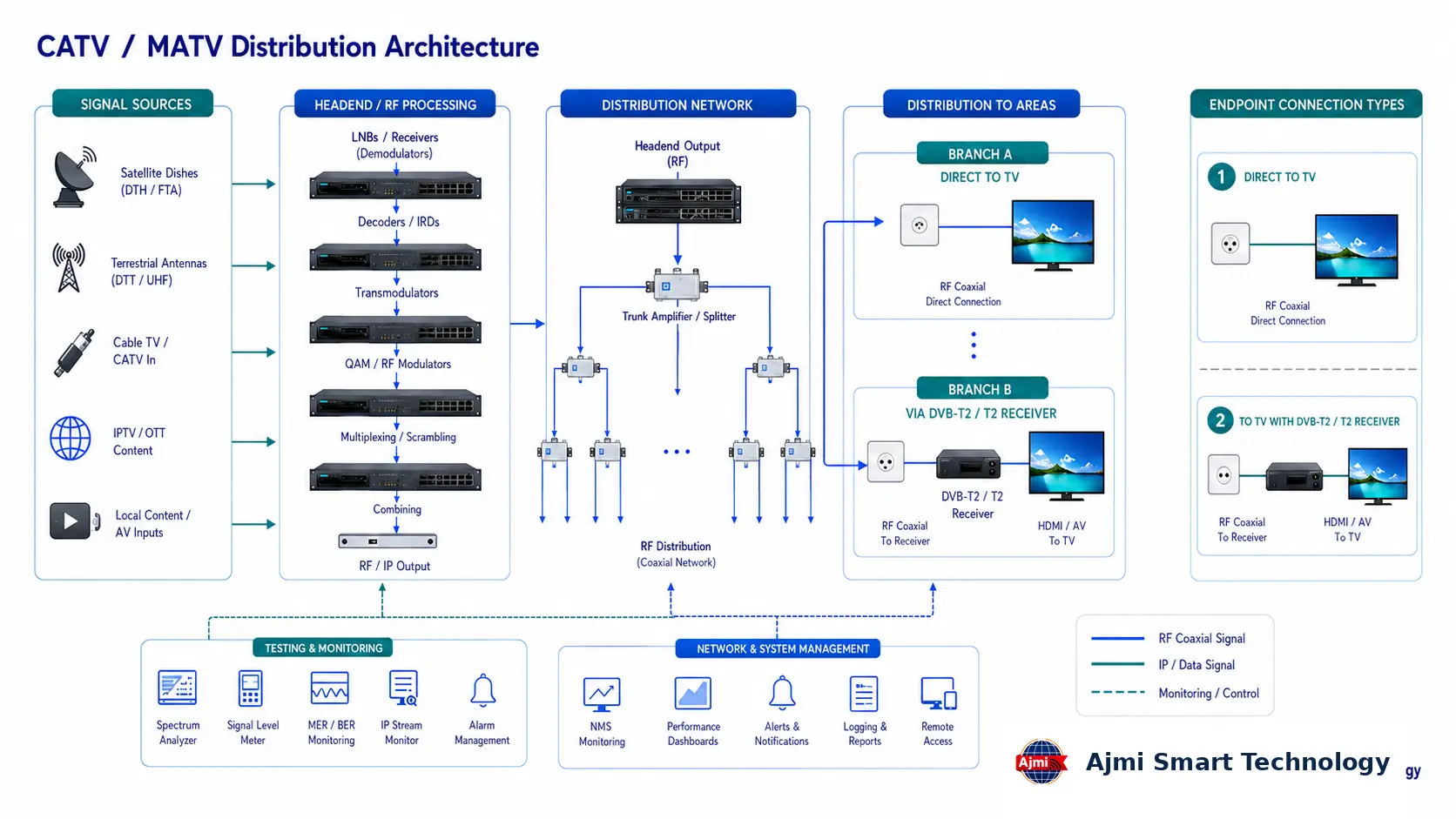

CATV / MATV distribution architecture drawing
This drawing shows the real system connectivity behind the service, including source flow, central equipment, network path, endpoint options, testing, support and long-term operation.
Delivery method
How AJMI delivers a television headend system
01
Channel & Signal Survey
Satellite, terrestrial, cable or IP sources, channel list, signal quality, rack space, power, cooling and distribution paths are reviewed.
02
Headend & Rack Design
Receivers, encoders, transcoders, modulators, CAS, switching, monitoring and rack layout are selected for the required outputs.
03
Rack Build & Commissioning
Headend devices are installed, patched, labelled, addressed and configured with approved channels and output parameters.
04
Channel Quality & Resilience Test
Source lock, picture quality, RF or IP output, redundancy, monitoring and representative endpoints are tested and recorded.
Remote Channel Monitoring
Managed receivers, servers, streams, alarms and channel status can be checked remotely where access is enabled.
On-site Signal & Rack Work
Dish inputs, RF levels, cabling, power, cooling and physical headend faults require on-site testing.
Headend AMC
AMC can include signal checks, channel verification, backups, licences, cooling inspection and corrective support.
Need this service for your project?
Send your requirement and Ajmi will review the suitable technical direction.
