Signal and source survey
Ajmi checks satellite source, dish position, /headend condition, existing cabling and signal quality.

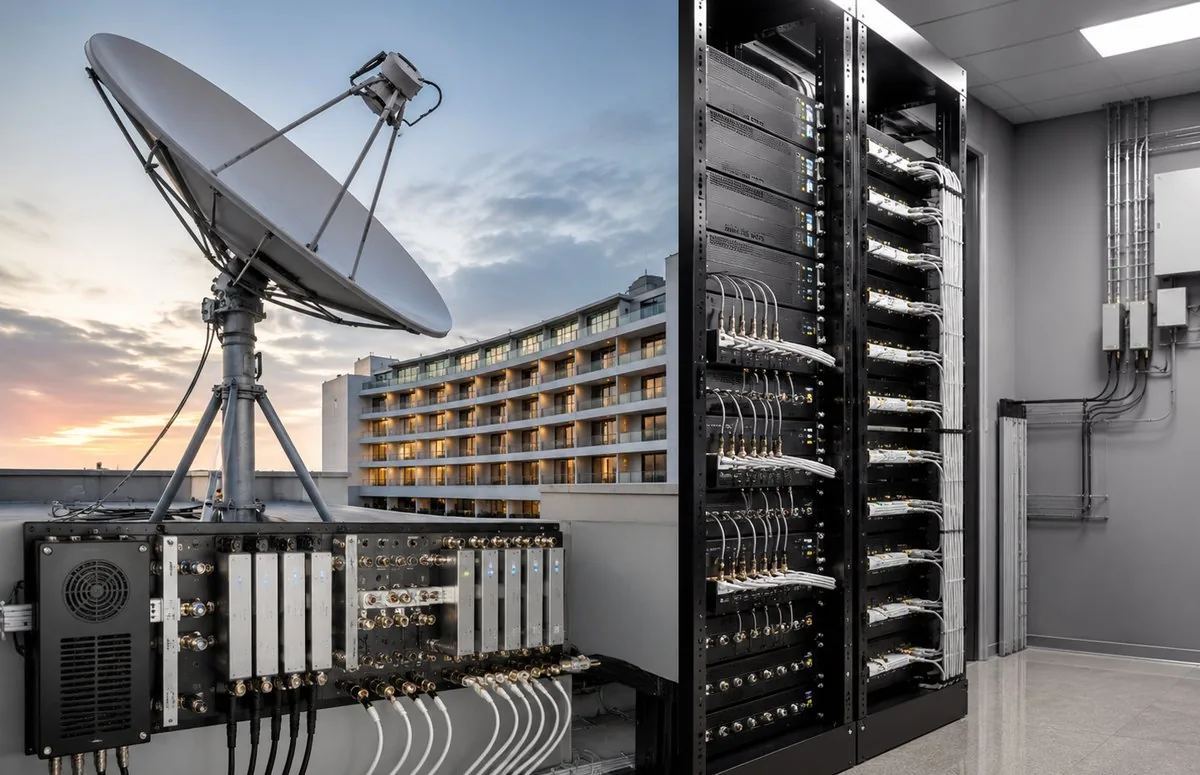

MATV System Design and Support
MATV distribution systems for buildings, hotels, compounds and accommodation projects with clean cabling and stable TV signal planning.
Real service scope
MATV system work AJMI delivers
AJMI plans terrestrial or approved shared television reception, amplification, coaxial distribution and outlet levels for buildings and facilities using a central antenna system.
Balanced RF performance across the complete building route
Aerial input, amplifiers, splitters, taps, cable loss and outlet quantities are included in the level budget. Representative and end-of-line outlets are measured and recorded.
Reception-source and coverage-condition surveyAmplifier, splitter, tap and coaxial route designRF level and cable-loss calculationOutlet measurement, balancing and as-built distribution record
Work modules
Service capability modules with field execution
Each module below represents a practical work area Ajmi can handle during planning, installation, commissioning or support.
Headend and rack design
, modulators, encoders, and rack equipment are planned according to the project.

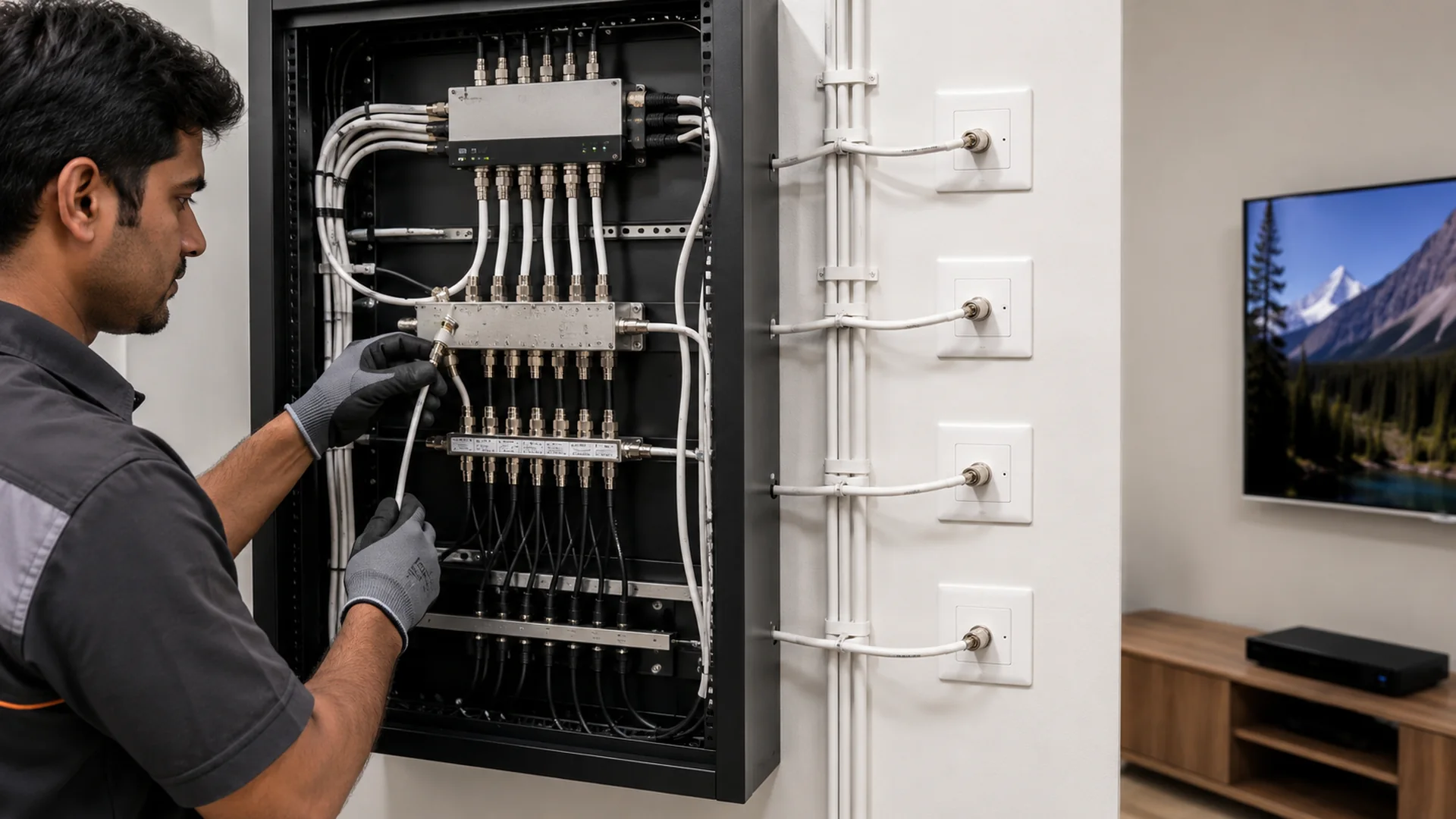

Distribution cabling layout
Riser, floor, room outlet, coax/fiber route and cable quality are reviewed for stable TV distribution.
/ setup
Distribution levels, taps and points are arranged for reliable signal delivery.

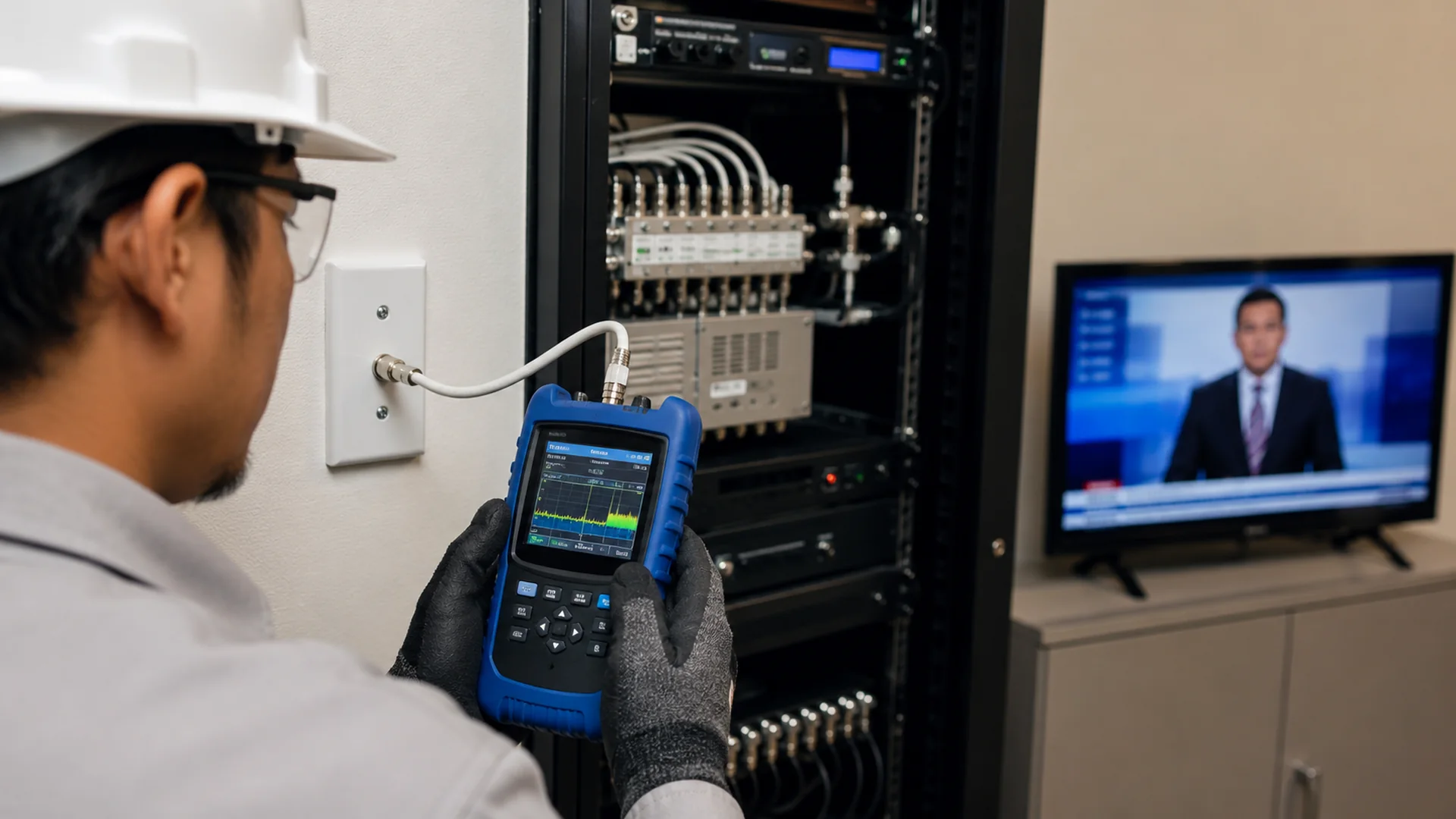

Testing and fault tracing
Signal strength, quality, channel availability and weak points are tested during commissioning.
Maintenance and upgrade
Ajmi supports existing MATV, SMATV, CATV, satellite and headend systems with repair and upgrade planning.
Technical system drawing

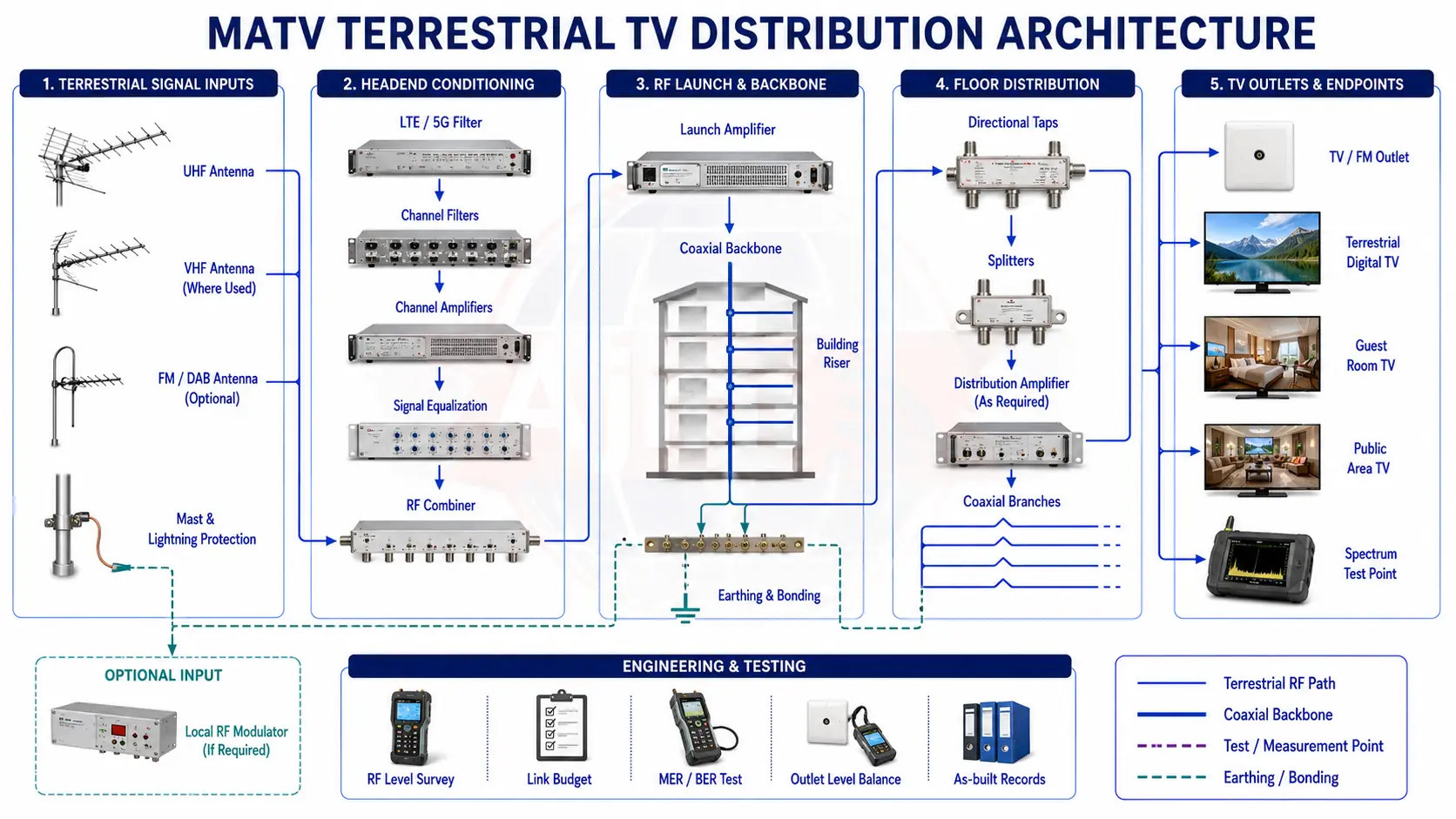

CATV / MATV distribution architecture drawing
This drawing shows the real system connectivity behind the service, including source flow, central equipment, network path, endpoint options, testing, support and long-term operation.
Delivery method
How AJMI delivers a MATV distribution network
01
Aerial, Dish & Riser Survey
Terrestrial or satellite sources, reception conditions, headend, coax risers, amplifiers, taps and outlet condition are inspected.
02
RF Distribution Design
Frequencies, antenna or dish equipment, headend, gain, losses, riser topology and target outlet levels are calculated.
03
MATV Installation
Aerial or dish equipment, headend, amplifiers, coax routes, splitters, taps and outlets are installed or corrected.
04
Outlet Signal Acceptance
Signal level, MER, BER, channel availability and picture quality are measured at representative and end outlets.
Remote Headend Check
Only monitored receivers or headend devices can be reviewed remotely where management access exists.
On-site MATV Testing
Reception, alignment, coax, connectors, amplifiers, taps and outlet levels require physical RF testing.
MATV AMC
AMC can include alignment, signal balancing, connector and amplifier inspection, channel checks and fault visits.
Need this service for your project?
Send your requirement and Ajmi will review the suitable technical direction.
