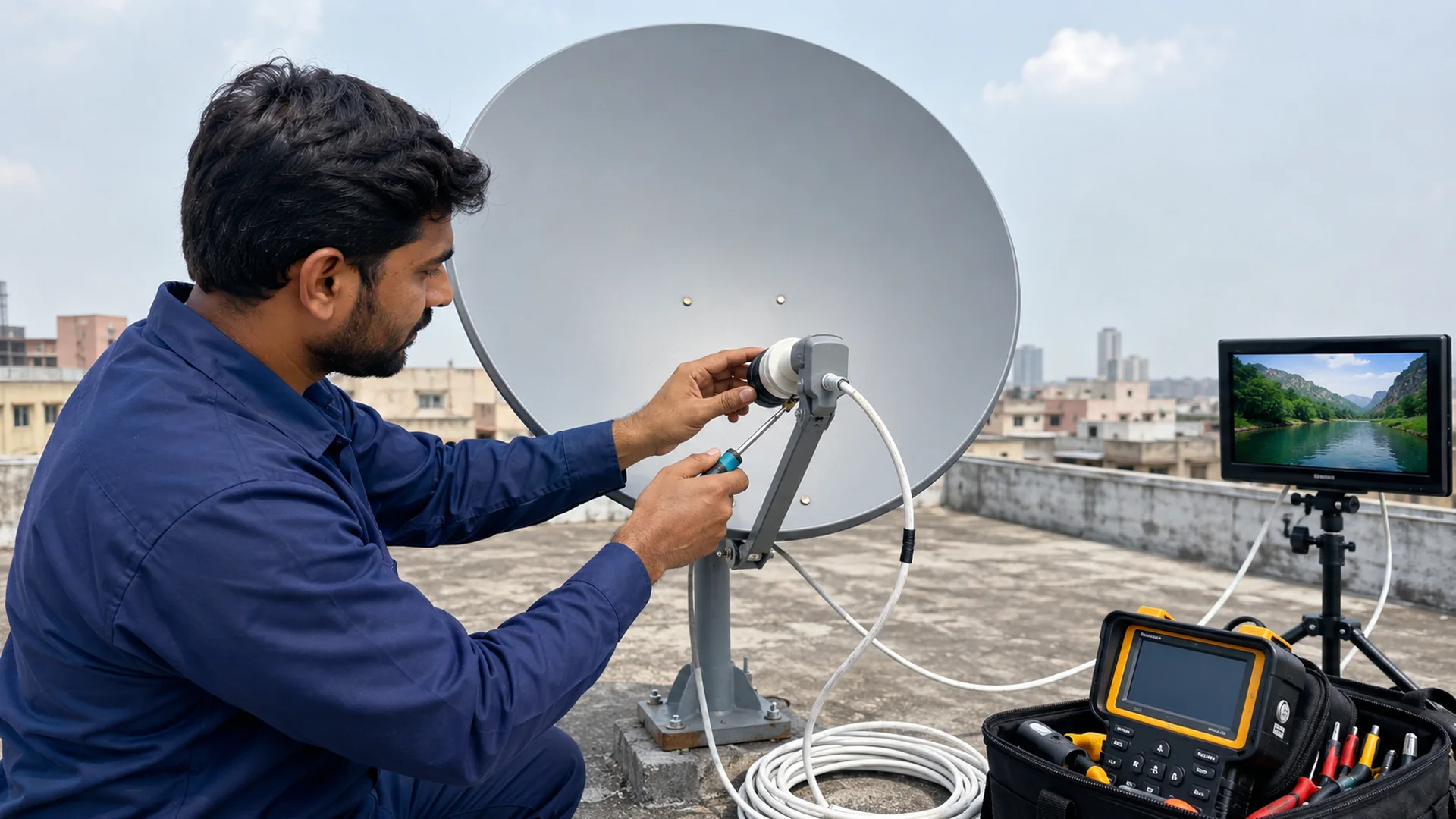

Signal and source survey
Ajmi checks satellite source, dish position, /headend condition, existing cabling and signal quality.

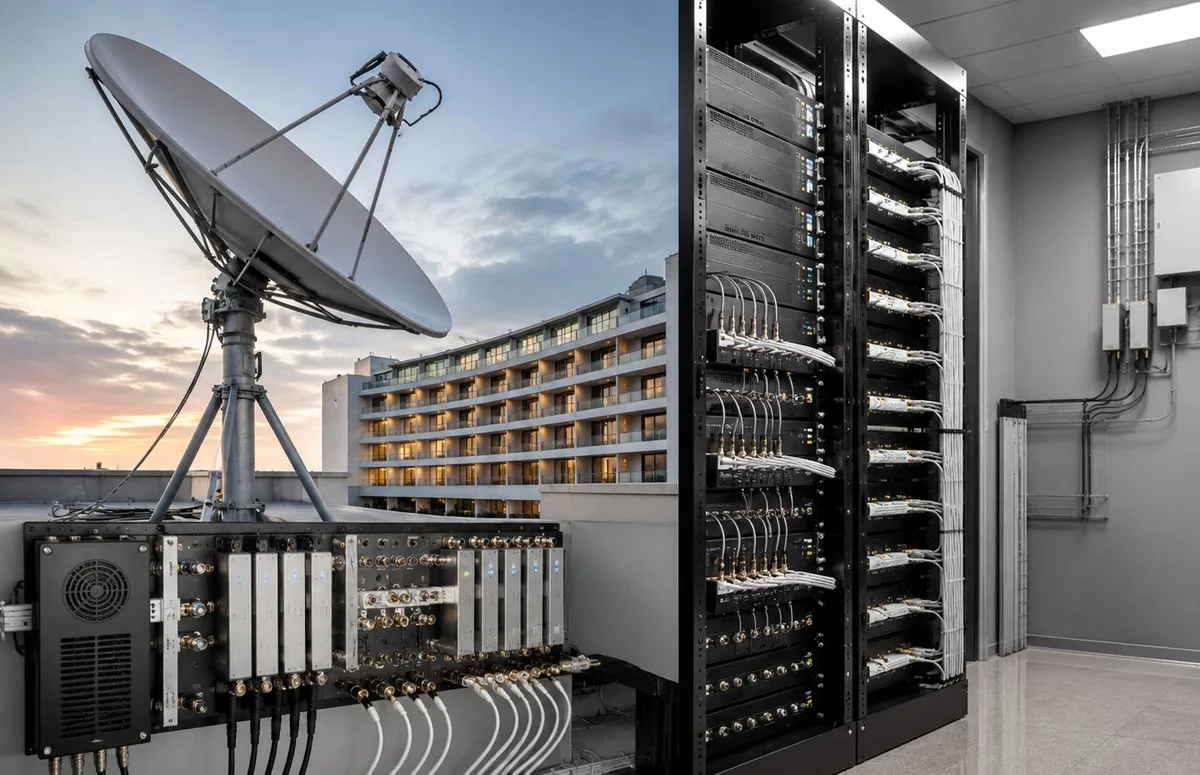

SMATV System for Hotels and Buildings
SMATV systems for satellite TV distribution through centralized headend and structured building-wide TV network architecture.
Real service scope
SMATV system planning and integration
AJMI designs central satellite reception and shared coaxial distribution for hotels, compounds and accommodation projects requiring selected channels at multiple outlets.
One controlled headend with balanced distribution levels
Dishes, LNB feeds, receivers or transmodulation, combiners, amplifiers, taps and outlet routes are coordinated around the approved channel list. Headend and outlet readings are documented.
Satellite and channel-list requirement verificationSMATV headend and receiver architectureAmplifier, splitter, tap and coaxial loss planningHeadend-to-outlet testing and signal-level report
Work modules
Service capability modules with field execution
Each module below represents a practical work area Ajmi can handle during planning, installation, commissioning or support.
Headend and rack design
, modulators, encoders, and rack equipment are planned according to the project.
Distribution cabling layout
Riser, floor, room outlet, coax/fiber route and cable quality are reviewed for stable TV distribution.
/ setup
Distribution levels, taps and points are arranged for reliable signal delivery.

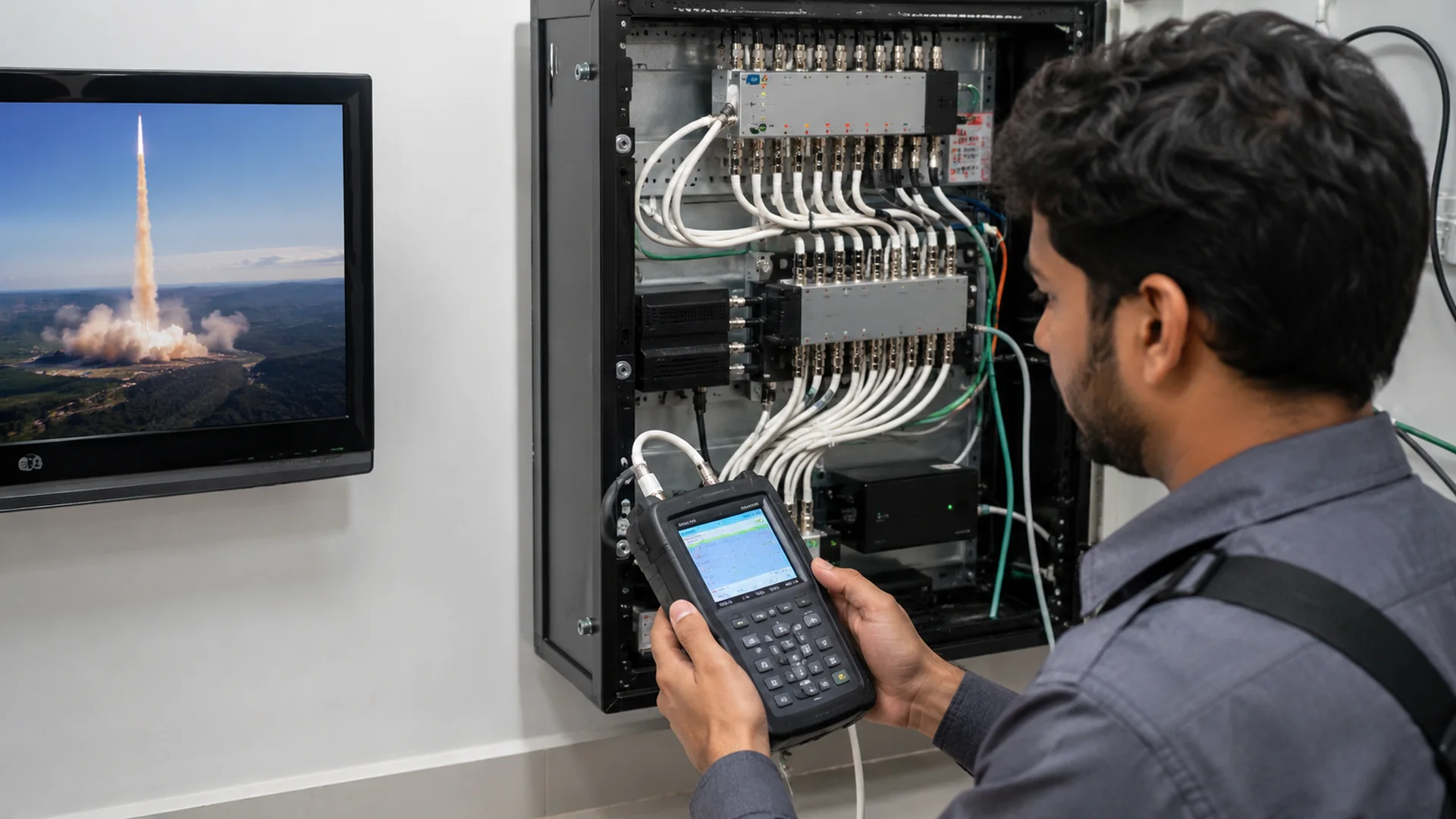

Testing and fault tracing
Signal strength, quality, channel availability and weak points are tested during commissioning.

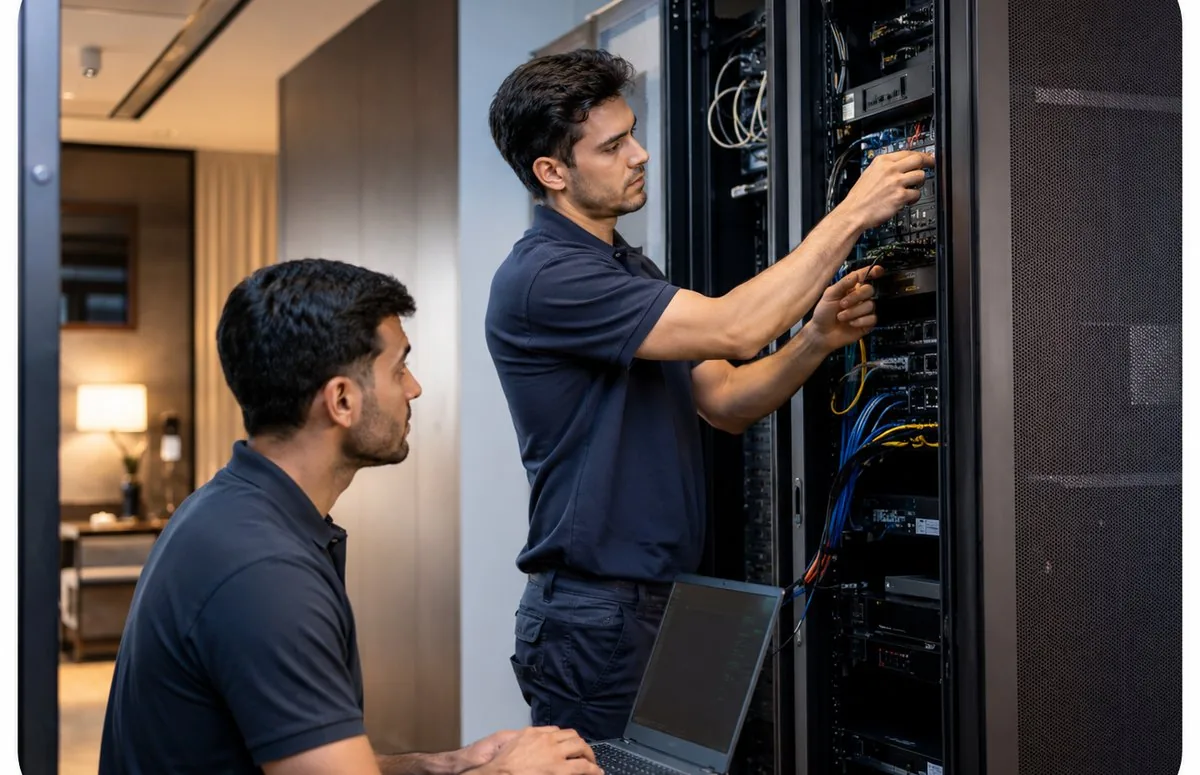

Maintenance and upgrade
Ajmi supports existing MATV, SMATV, CATV, satellite and headend systems with repair and upgrade planning.
Technical system drawing

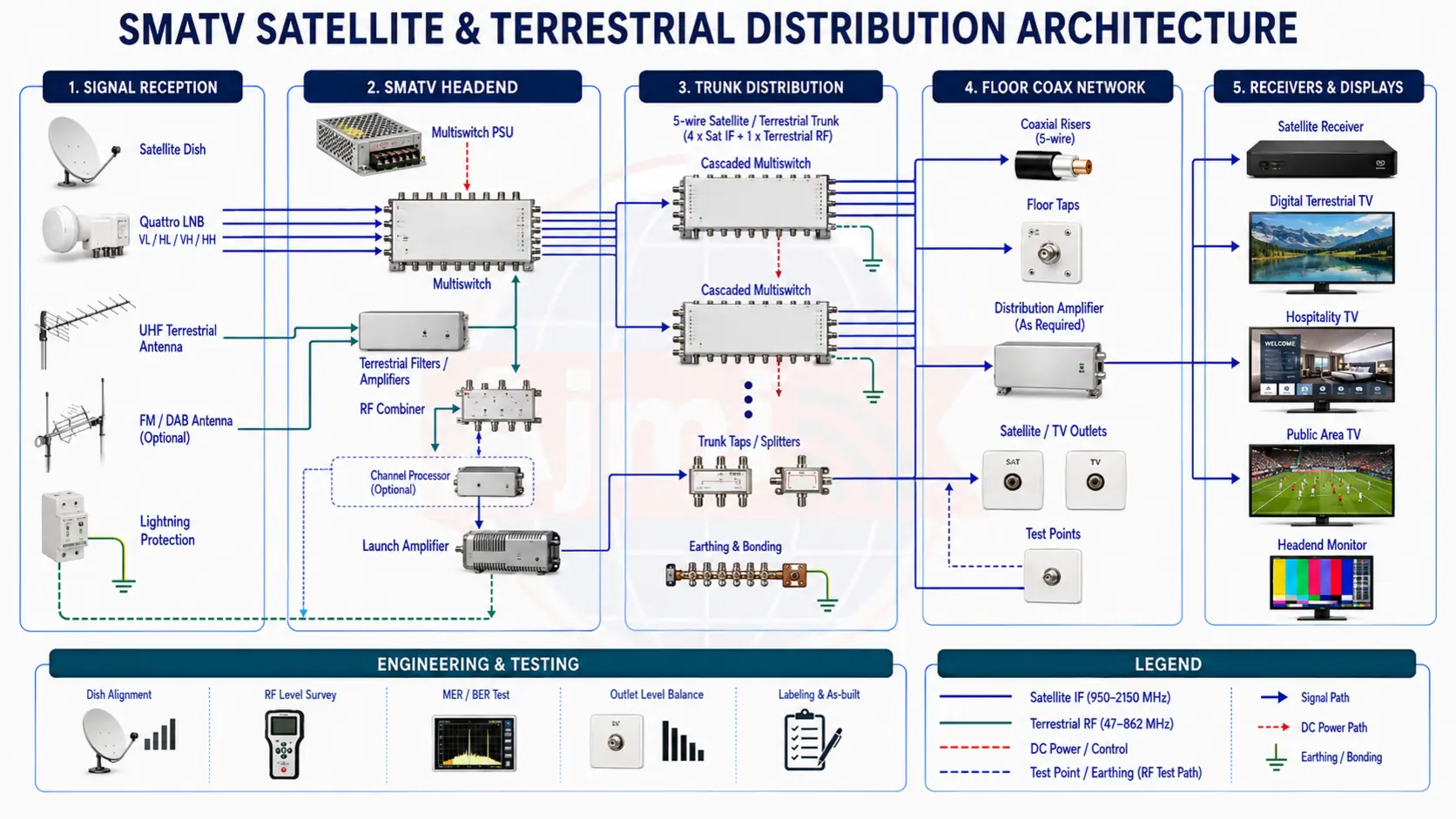

CATV / MATV distribution architecture drawing
This drawing shows the real system connectivity behind the service, including source flow, central equipment, network path, endpoint options, testing, support and long-term operation.
Delivery method
How AJMI delivers a central SMATV system
01
Sources, Buildings & Outlet Survey
Satellite and terrestrial sources, headend, building risers, fibre or coax paths, amplifiers, taps and outlet quantities are reviewed.
02
Central Distribution Design
The central headend, channel plan, optical or coax backbone, gain, losses, building branches and outlet levels are calculated.
03
Headend & Riser Installation
Dish and headend equipment, fibre or coax risers, amplifiers, splitters, taps and outlets are installed and labelled.
04
Building-Level Signal Acceptance
Channel availability, optical or RF levels, MER, BER and picture quality are measured across representative buildings and outlets.
Remote Headend Monitoring
Managed headend equipment, receivers and alarms can be reviewed remotely where monitoring is available.
On-site Distribution Support
Dish signals, fibre or coax, amplifiers, taps and outlet faults require physical measurement.
SMATV AMC
AMC can include signal balancing, headend checks, connector inspection, amplifier review and preventive visits.
