Path and rack survey
Ajmi studies cable routes, racks, risers, floor points, access point locations and future expansion.

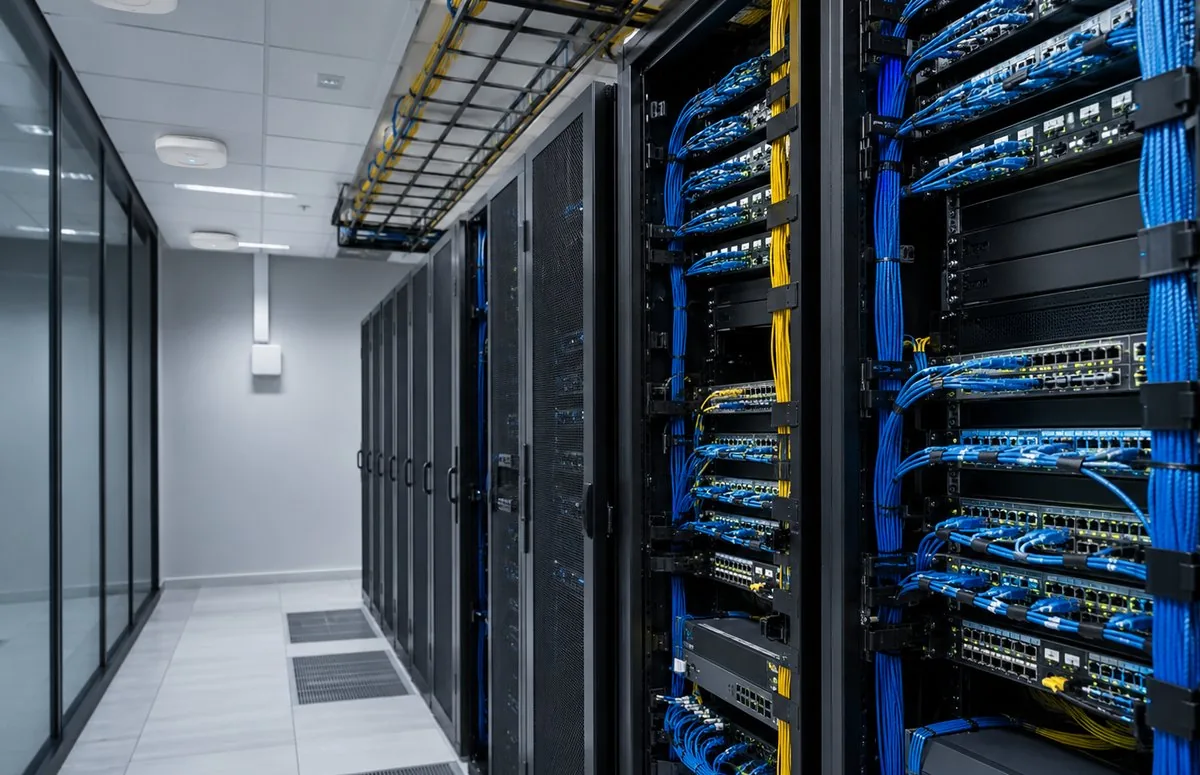

Structured cabling for IPTV systems
Copper and fibre cabling, racks, patching, labels and certification for IPTV headends, managed switches, Smart TVs, Android STBs and future expansion.
Real service scope
Structured cabling work AJMI delivers
AJMI surveys pathways, racks, outlets, fibre backbones and copper links for IPTV, networks, CCTV and low-current systems, then coordinates containment, patching, labels and installation quality.
Certified links and documentation, not cable pulling alone
Cable category, length, bend radius, segregation, termination and patch-panel organisation are controlled. Copper and fibre tests are linked to outlet labels and as-built records for future support.
Cable-route, outlet and rack-readiness surveyCopper, fibre, containment and patch-panel planningTermination, rack dressing and permanent labellingCable certification, test reports and as-built schedules
Work modules
Service capability modules with field execution
Each module below represents a practical work area Ajmi can handle during planning, installation, commissioning or support.
Switch and Wi-Fi planning
Switch capacity, PoE, VLANs, access points, coverage and backbone requirements are planned.
Structured cabling work
Cables, patch panels, racks, labeling, terminations and cable management are executed neatly.
Access point deployment
Access points are mounted, configured and tested for coverage, roaming and user load.
Testing and documentation
Cable tests, connectivity checks, signal coverage notes and rack documentation are prepared.
Support and optimization
Ajmi supports network faults, Wi-Fi dead zones, switch issues and AMC recommendations.
Technical system drawing

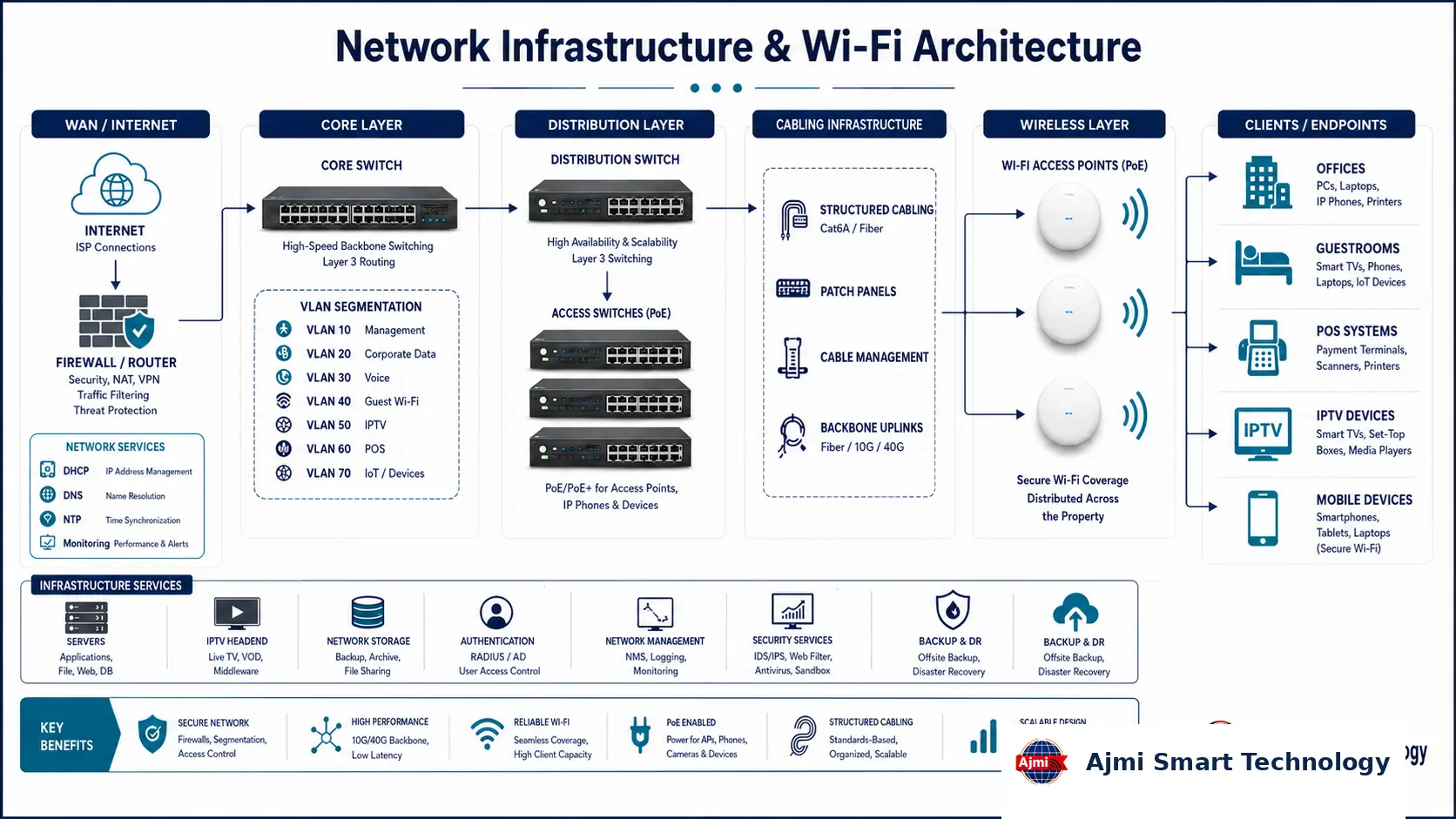

Network infrastructure and Wi‑Fi architecture drawing
This drawing shows the real system connectivity behind the service, including source flow, central equipment, network path, endpoint options, testing, support and long-term operation.
Delivery method
How AJMI delivers structured cabling for technical systems
01
Drawings, Routes & Point Survey
Floor plans, racks, risers, pathways, outlet quantities, cable categories, fibre distances, earthing and site constraints are verified.
02
Backbone & Horizontal Design
AJMI defines fibre backbone, CAT6 or approved copper links, rack elevations, patch panels, containment, labels and test requirements.
03
Containment, Pulling & Termination
Pathways, fibre and copper cables, racks, patch panels and outlets are installed, dressed, terminated and labelled.
04
Certification & As-Built Handover
Copper certification, fibre loss or OTDR tests, labels, schedules, rack records and as-built drawings are completed.
Remote Drawing & Test Review
Layouts, cable schedules, test reports, labels and as-built records can be reviewed remotely.
On-site Cabling Execution
Routes, containment, pulling, termination, rack work and physical faults require site attendance.
Cabling Maintenance
Maintenance can cover inspection, moves-adds-changes, re-termination, testing, labelling and rack housekeeping.
Need this service for your project?
Send your requirement and Ajmi will review the suitable technical direction.
